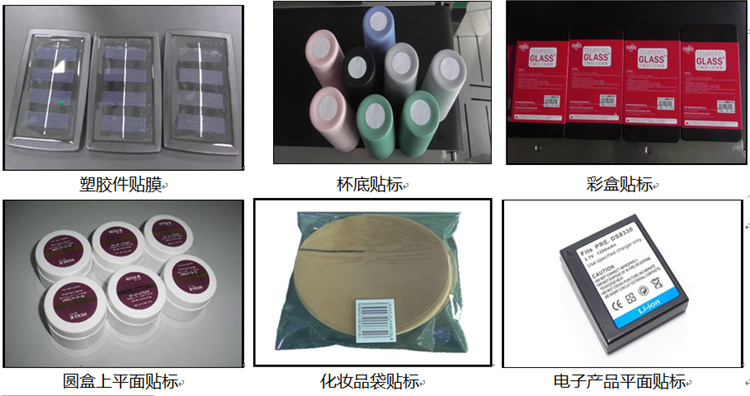

Suitable for multiple products: This model can be used for flat labeling, film application, or 3M adhesive application on various workpieces or products. The labeling mechanism can also be replaced, appropriately modified, or customized according to the characteristics of the product to be labeled;

Wide applicability: Suitable for objects made of different materials such as metal, glass, plastic, PET, etc;

Fast labeling speed: using roll on labeling, about 40-150 pieces/minute (step), 4-13 times faster than manual labeling. The labeling speed of the equipment can be adjusted according to the production line speed or manual feeding speed; If faster speed is required, it can be replaced with servo;

Accurate labeling, high stability: good labeling effect, precision 1mm: using PLC subdivision stepper motor to drive label delivery, ensuring accurate delivery standards; Adopting a cam type brake mechanism, the tension is uniform, ensuring that the label is taut, reducing label breakage, and ensuring accurate label detection; The correction mechanism for the tape deviation prevents the label from shifting left and right, ensuring the accuracy of the marking process;

Powerful functionality and multifunctional configuration: The header can be freely adjusted up and down, front and back, with simple operation; Automatic photoelectric tracking, with functions of no labeling for no object, automatic calibration for no label, and automatic label detection to prevent missing labels and waste; The auxiliary function configuration can be selected according to the actual production situation of the customer, which can be operated by one person alone or connected to the production line for operation;

Intelligent control, simple operation: adopting humanized design, PLC programming control, color large touch screen operation, fully Chinese operation interface, convenient and intuitive, powerful data memory function, can store 50 sets of labeling parameters, easy and fast operation; Complete fault prompt and assistance functions;

The measuring target and measuring object electric eye adopt imported first-line brand sensors: high detection sensitivity, stable performance, and durability; Convenient production management: equipped with functions such as label counting, power-saving mode, and photoelectric tracking labels, making production management easier; Excellent material selection and excellent quality: The main components of this model are made of stainless steel and high-grade aluminum alloy plates, which are highly rigid, non deformable, non rusting, and aesthetically pleasing; Simultaneously following the ISO9001 quality management system, emphasizing quality and user experience, and complying with GMP excellent manufacturing standards;

Optional features and components:

Coding machine: Hot coding machine can print production date, product expiration date, production batch number, etc., improving production efficiency:

Universal sensor: Ordinary sensors cannot detect transparent labels, and special transparent label detection electric eyes must be selected for use;

Spray coding machine: can be matched with mainstream spray coding machines on the market to spray coding at the designated position on the label:

Code reader: When labeling, it reads QR codes, barcodes, and other information to facilitate the establishment of a product database for product traceability.

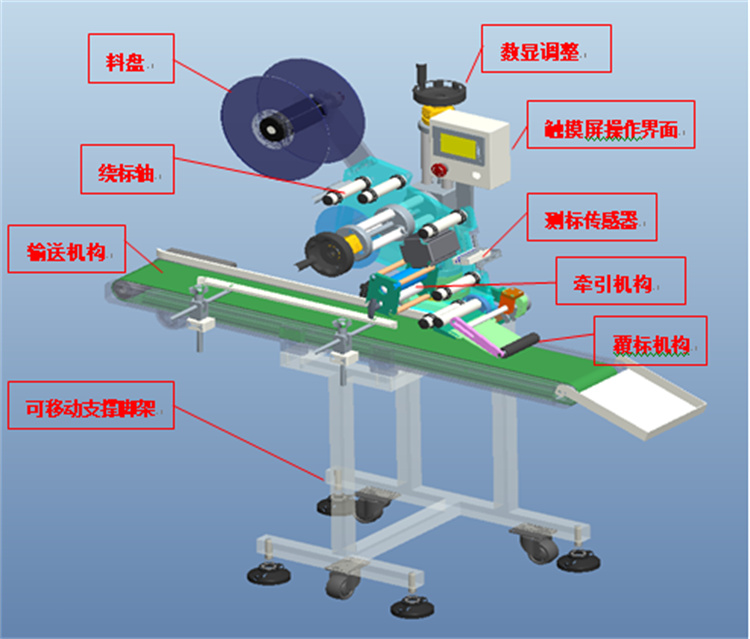

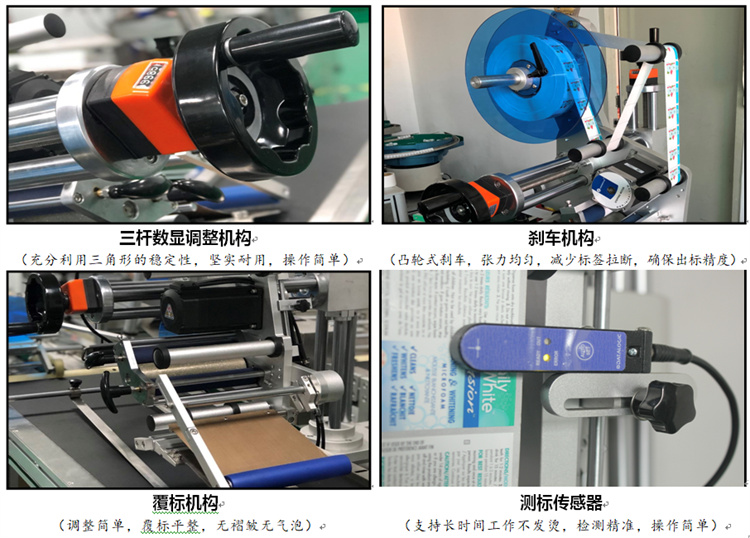

Structure and Details:



Technical Specifications:

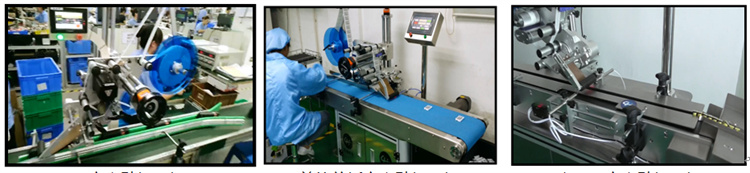

Use case:
